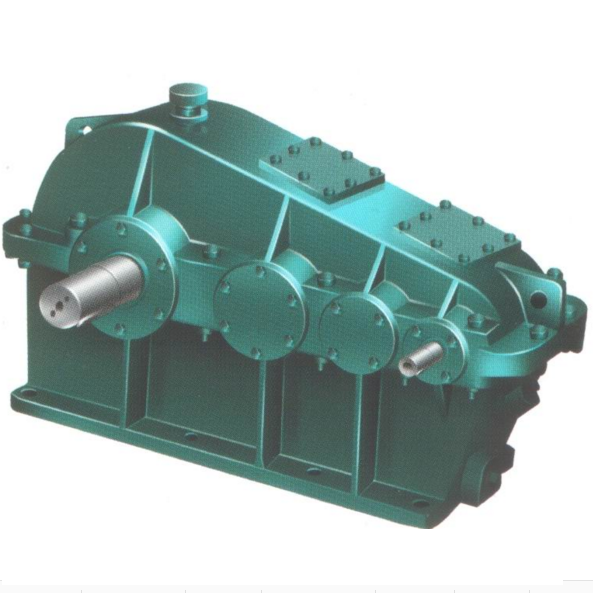

As a necessary component of transmission products such as screw jacks, the stability of the hard tooth reducer plays an important role in the entire transmission system.Do you know the transmission conditions and characteristics of the hard tooth reducer?Come on, take a look at the editor.
1. The gear speed is not more than 20m/s;
2. High speed is 1500r/axis less than * * *;
3. The working environment temperature is 40°C - 45°C
4. It can be both positive and negative operations.
Taking into account the working characteristics of the crane mechanism and the transmission range, the product performance is further improved, and fewer specifications are used to meet the user's requirements.Various features:
1. High carrying capacity.Gears are carburized, hardened and ground.The load capacity is higher than that of the soft tooth surface and rigid surface gear reducer, which greatly improves the quenched and tempered roller teeth.
2. Small size and light weight.With the same bearing capacity as the gear reducer with soft tooth surface and hard tooth surface, the gear reducer can reduce the number of equivalent seats by 24.
3. High efficiency, low noise and low vibration.Gear grinding improves precision levels.With a combined benefit of 0.98 per rating, vibration and noise are significantly reduced.
4. Adopt multi-series, reduce speed, pull single-stage center distance, reduce deceleration, meet the high requirements of crane mechanism; 400 nominal * * * large transmission gear reducer, meet the requirements of slow cranes.
5.3 fulcrum deceleration, but it is installed horizontally and vertically, even at the deflection angle, which is convenient and fast.
6. Three-stage and four-stage combination mode gear reducer (that is, three-stage assembly form and four-stage transmission ratio) series provide the premise to slow down the generalization of cranes.
