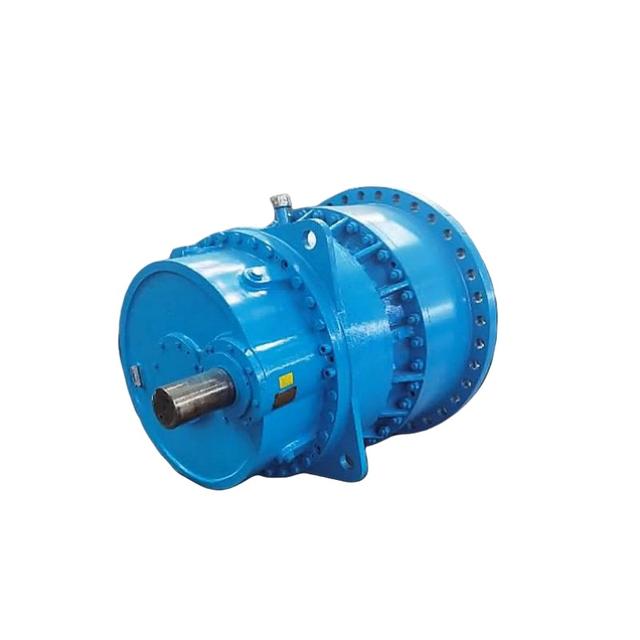

As a common transmission device, planetary gear reducer is widely used in many mechanical fields.With its efficient and stable characteristics, it has become an indispensable key component in many mechanical equipment.This article will deeply explore the transmission method of planetary gear reducer and its application in different scenarios, giving you a comprehensive understanding of the mystery of this transmission device.
The transmission modes of planetary gear reducers are mainly divided into internal meshing type, external meshing type and hybrid type reducer.The internal meshing planetary gear reducer is composed of a central sun gear, an internal planetary gear, an external planetary gear, and an inner and outer meshing ring.During transmission, the sun gear serves as the input shaft, and the speed conversion of the output shaft is realized through the combination of the planet gear and the internal and external meshing rings.This transmission method has compact structure and high transmission efficiency, and is widely used in industrial production.
The structure of the external meshing planetary gear reducer is different from the internal meshing type. It consists of a central sun gear, an external meshing planetary gear and an internal meshing planetary gear.The outer meshing planetary gear meshes directly with the central sun gear through the outer meshing to achieve power transmission.The transmission method of the external meshing planetary gear reducer is simple and reliable, and is suitable for scenarios that bear large impact loads and torques.
The hybrid planetary gear reducer is a combination of internal meshing and external meshing, and has the advantages of both.It consists of a central sun gear, an external meshing planet gear, an internal meshing planet gear and an inner and outer meshing ring.During transmission, the outer planetary gear meshes with the center sun gear externally, while the internal meshing planetary gear meshes internally with the sun gear, and is connected to the outer planetary gear through internal and external meshing rings.The hybrid planetary gear reducer has the characteristics of simple structure and smooth transmission, and is suitable for some occasions that require high transmission accuracy and stability.
Planetary gear reducers are used in a wide range of applications, such as machine tool manufacturing, shipbuilding industry, wind power generation, textile machinery, etc.In machine tool manufacturing, planetary gear reducers are often used in the transmission system of CNC machine tools, which can achieve high-precision speed control and improve transmission efficiency.In the shipbuilding industry, planetary gear reducers are widely used in propulsion systems. Through the function of the reducer, the drive and travel of the ship are realized.In the field of wind power generation, planetary gear reducers can convert the rapid rotation of the wind wheel into stable power generation speed, ensuring high efficiency and stability of wind energy conversion.In the field of textile machinery, the high reliability and smooth transmission of planetary gear reducers make them an important transmission device in textile machinery.
To sum up, as an important transmission device, planetary gear reducer has a variety of transmission modes and a wide range of application scenarios.Different transmission methods are suitable for different working conditions and can provide stable and efficient transmission effects.In practical applications, we should choose a suitable planetary gear reducer according to the needs of specific scenarios to ensure the normal operation of mechanical equipment and improve work efficiency.
