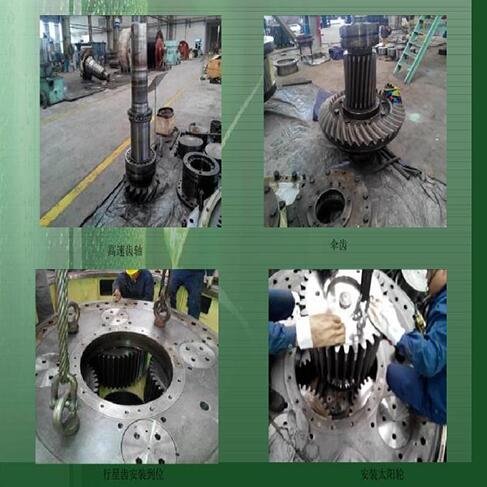

Weigao mixer reducer reducer special reducer for cement mixing is a reducer with spiral bevel gear + planetary gear structure, with:
1. The spline structure is used to drive the torque between the parts;
2. The planetary gear carrier adopts a floating design to ensure that each gear bears the same load;
3. Both the box body and the connecting body are made of black cast iron, which has the advantages of high efficiency, small backlash, large torque, impact resistance, etc., and can meet the use of 1.5 cubic to 4 cubic mixers;
Use and maintenance:
1. Before the reducer is officially used, the reducer must be turned flexibly by hand without getting stuck, and then run for no less than 2 hours without load.The operation should be stable, without shock, vibration, noise or oil leakage, etc., and the fault should be eliminated in time.
2 After the reducer has been running for 300 to 600 hours, the lubricating oil should be replaced.After that, it will be updated every 1500-5000 hours of operation, which mainly depends on the working environment, but the longest replacement time should not exceed 18 months.When changing the oil, the electromagnetic oil plug should be cleaned at the same time.
3. During operation, if the oil temperature rises suddenly and there is an abnormal sound, please stop checking immediately.After correcting the fault, it can be put into operation again.
1. The reducer is usually used for transmission equipment with low speed and high torque.An electric motor, internal combustion engine or other high-speed operating power is used to engage a large gear on the output shaft through a gear with a small number of teeth on the input shaft of the reducer.
2. Ordinary reducers will also have several pairs of gears with the same principle to achieve the required reduction.The gear ratio is the ratio of the number of teeth of the large gear to the small gear.
3. The reducer is a power transmission mechanism that uses a gear reducer to reduce the number of revolutions of the motor to the required number of revolutions and obtain greater torque.
