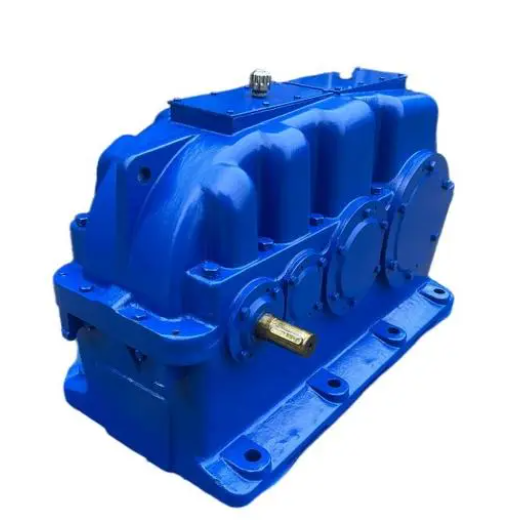

In the field of mechanical transmission, the ZSY200-56-2 transmission gearbox reducer has received widespread attention and application due to its excellent performance, stable operation and high energy conversion efficiency.Among them, the steel plate welded box, as an important component, not only carries the weight and power of the entire transmission system, but also needs to maintain a stable structure and good sealing in a complex working environment.This article will deeply discuss the design features, structural rationality and practical application advantages of the steel plate welded box in the ZSY200-56-2 transmission gearbox reducer.
1. Design features of steel plate welded box
The steel plate welded box is an important part of the ZSY200-56-2 transmission gearbox reducer. Its design features are mainly reflected in the following aspects:
1. Material selection: Steel plate welded boxes usually use high-strength, high-toughness high-quality steel plates as raw materials to ensure that the box has good strength and toughness when withstanding heavy loads and impacts.At the same time, high-quality steel plates also have good corrosion resistance and wear resistance, and can maintain a long service life in harsh working environments.
2. Welding process: The welding process is a key link in the manufacturing process of steel plate welded boxes.By using advanced welding technology and equipment, we can ensure that the welds of the box are of high quality, high strength, and good sealing.At the same time, reasonable welding sequence and process parameter selection can effectively reduce the occurrence of welding deformation and cracks and improve the overall quality of the box.
3. Structural design: The structural design of the steel plate welded box fully considers the use requirements and working environment of the transmission gearbox reducer.The cabinet adopts modular design for easy assembly and maintenance.At the same time, the internal layout of the box is reasonable and the cooperation between various components is close, which can effectively reduce the generation of vibration and noise and improve transmission efficiency.
2. Structural rationality of steel plate welded box
The structural rationality of the steel plate welded box is mainly reflected in the following aspects:
1. Bearing capacity: The steel plate welded box has sufficient bearing capacity and can withstand various loads and impact forces generated by the transmission gearbox reducer during operation.At the same time, the wall thickness and structural design of the box have been carefully calculated and optimized to reduce weight and improve transmission efficiency while ensuring strength.
2. Sealing performance: The sealing performance of the steel plate welded box is crucial to the normal operation of the transmission gearbox reducer.By using high-quality sealing materials and advanced sealing technology, it can be ensured that the box does not leak oil or water during operation, ensuring the stability and reliability of the transmission system.
3. Heat dissipation performance: The transmission gearbox reducer will generate a large amount of heat during operation. If the heat cannot be dissipated in time, the transmission efficiency and service life will be affected.Through reasonable heat dissipation design and structural layout, the steel plate welded box can effectively dissipate heat and maintain the normal operating temperature of the transmission system.
4. Maintenance convenience: The steel plate welded box adopts modular design for easy assembly and maintenance.When the transmission gearbox reducer fails, the faulty parts can be quickly located and replaced, reducing downtime and maintenance costs.
3. Advantages of steel plate welded boxes in practical applications
The application of steel plate welded box in ZSY200-56-2 transmission gearbox reducer brings the following advantages:
1. Improve transmission efficiency: The steel plate welded box has good load-bearing capacity and sealing performance, which can reduce energy loss and friction loss during the transmission process and improve transmission efficiency.
2. Extended service life: High-quality steel plates and advanced welding technology ensure the strength and toughness of the steel plate welded box, which can maintain a long service life in harsh working environments.
3. Reduce maintenance costs: The modular design and reasonable structural layout make the steel plate welded box easy to repair and replace parts, reducing maintenance costs and time.
4. Improve working stability: Through reasonable heat dissipation design and structural layout, the steel plate welded box can effectively dissipate heat, maintain the normal operating temperature of the transmission system, and improve working stability.
To sum up, the steel plate welded box plays a vital role in the ZSY200-56-2 transmission gearbox reducer.Its design features, structural rationality and advantages in practical applications make the transmission gearbox reducer have broad application prospects and market demand in the field of mechanical transmission.
