With its core advantages of compact structure, large transmission ratio, smooth operation, low noise, and excellent self-locking performance, worm gear reducers have become a widely used reduction transmission device in the field of industrial transmission. They are widely adapted to various heavy-load, low-speed, and stable transmission conditions such as belt conveying, screw conveying, chemical mixing, material lifting, textile machinery, and packaging equipment. However, in actual production, most front-line operators only master basic start-stop operations and lack knowledge of the internal structure, transmission logic, and key vulnerable points of the equipment. Misoperations such as oil shortage, overload use, and improper assembly often occur, which aggravate component wear, cause oil leakage and abnormal noise, significantly shorten the service life of the equipment, and increase the cost of shutdown maintenance. This article will systematically dismantle the core components, material characteristics, and functions of the worm gear reducer, and explain its working principle in a popular way to help operators establish basic understanding and standardize the use and maintenance of the equipment.

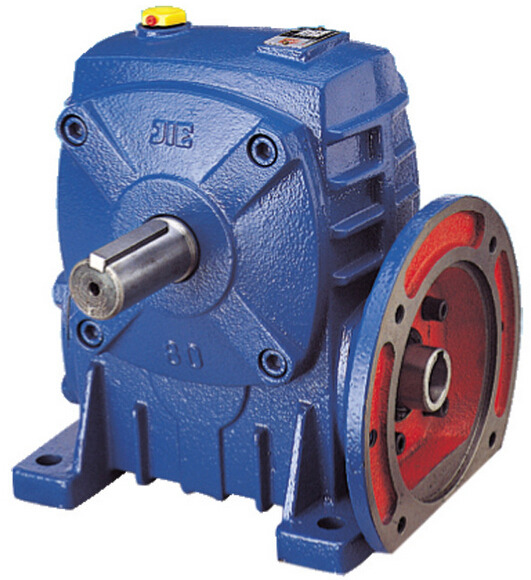

The worm gear reducer seems to have a simple structure, but in fact it is composed of seven key components that work together to complete the reduction transmission, namely: worm, worm gear, box, bearing, oil seal, oil cap, and oil mark. Each component has a clear division of labor and is indispensable, jointly ensuring transmission stability and equipment durability.
Worm: As the active transmission component of the reducer, it is usually made of high-quality alloy steel through precision processing, quenching and tempering. It has the characteristics of high hardness, high strength, impact resistance, and not easy to deform. It can withstand the high speed and high torque transmitted by the motor and is the core component of power input. Its surface accuracy directly affects transmission efficiency. The higher the processing accuracy, the smaller the running friction and the lower the noise.
Worm gear: As a passive transmission component, it meshes vertically with the worm to achieve deceleration. It is the core driven part of the reducer. The material is mostly made of tin bronze. This type of metal has excellent wear resistance, small friction coefficient, and strong meshing compatibility with the worm, which can effectively reduce meshing wear and improve transmission stability. At the same time, the worm gear is also the core component that is most susceptible to wear during equipment operation. Long-term high-speed meshing, lack of oil lubrication, and overload operation will accelerate the wear of the worm gear tooth surface, causing the transmission gap to increase and the accuracy to decrease. It is the focus of equipment maintenance.
Box: As the basic load-bearing shell of the reducer, it is the installation carrier for all internal components. It is mainly divided into two categories: aluminum alloy box and cast iron box. The aluminum alloy box is lightweight, has fast heat dissipation, and has a simple appearance, and is suitable for light-load and small equipment; the cast iron box has high strength, good rigidity, strong shock absorption, impact resistance, and is suitable for heavy loads and harsh working conditions. The box has two core functions: one is to accurately fix the worm, worm gear, bearing and other components to ensure a stable meshing gap; the other is to form a sealed oil chamber to store lubricating oil and provide continuous lubrication for the transmission components.
Bearings: Assembled at both ends of the rotating shafts of worms and worm gears, their core function is to support the rotating shafts, reduce rotational friction, and reduce operating losses. The accuracy and quality of bearings directly affect the smoothness of equipment rotation. High-quality bearings can reduce radial and axial runout, avoid shaft deviation, ensure precise meshing of worms and worm gears, and extend the service life of the shaft.
Oil seal: Installed at the connection between the rotating shaft and the box, it is a sealing protection component. Its core function is to seal against oil leakage and block external impurities. On the one hand, it prevents the lubricating oil in the box from leaking along the gap of the rotating shaft to avoid oil shortage failure; on the other hand, it blocks dust, water vapor, and material debris from entering the inside of the box, preventing lubricating oil contamination and component corrosion. It is a key component to prevent oil leakage and extend the lubrication cycle.
Oil cap: It is divided into oil filling cap and oil drain cap, which are located at the upper and lower parts of the box respectively. The upper oil filling cap is used to refill and replace lubricating oil, and the lower oil drain cap is used to discharge aging and excessive impurity waste oil to facilitate regular equipment maintenance and oil change maintenance, and to ensure the cleanliness of the lubrication system.
Oil leveler: An intuitive observation component installed on the side wall of the box. The internal lubricating oil level can be clearly viewed without opening the cover. The oil level is marked with upper and lower limit scales so that operators can quickly determine whether the oil level is sufficient: if the oil level is lower than the lower limit, it will cause insufficient lubrication and component burnout; if the oil level is higher than the upper limit, it will increase operating resistance and cause oil leakage. It is the core observation point for daily inspections.
