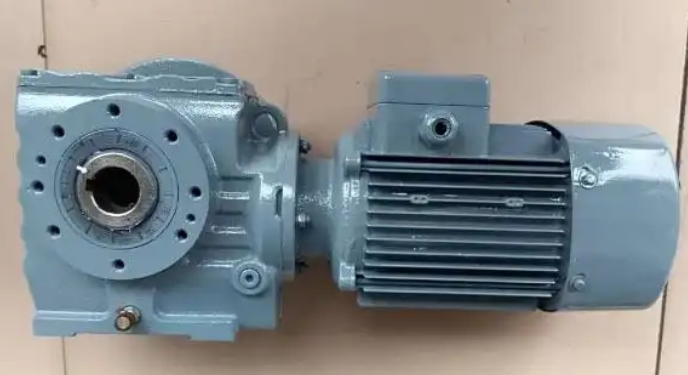

The following is an in-depth analysis and corresponding prevention strategies:
1. Reason analysis:
The material quality and heat treatment process of the spindle or reducer shaft directly determine its fatigue resistance. If the selected materials are unreasonable (such as internal defects such as pores and inclusions), or the heat treatment is not in place (such as surface hardness not up to standard and core toughness poor), the fatigue resistance of the shaft will be greatly reduced. For example, some cast spindles are loose inside, like "roasted steamed buns", and are prone to fatigue cracks under alternating stress; while some shafts are not surface treated after quenching and tempering, resulting in surface hardness far lower than the design requirements, accelerating early fatigue fracture.
2. Prevention strategies:
Upgrading materials and forming processes: Prioritize the use of high-strength alloy steels (such as 42CrMo, 18CrNiMo7-6, etc.), and use full forging processes instead of castings. Forging can refine metal grains, tighten the structure, eliminate internal pores, and greatly improve toughness and impact resistance.
Optimize the heat treatment process: Ensure that the gears and spindles have undergone sufficient carburizing and quenching, quenching and tempering, or surface high-frequency/medium-frequency treatment to achieve the ideal state of "hard surface and tough core" to improve fatigue and wear resistance.
2. Culprit 2: Structural design defects and stress concentration
1. Analysis of causes of structural design defects and stress concentration:
Unreasonable shaft geometry design is a potential risk for fracture. For example, the radius of the shoulder transition fillet is too small, the bottom of the keyway is not chamfered, and the undercut is rough, etc., which will cause serious stress concentration during work. Under the action of long-term rotational bending or torsion stress, micro cracks will initiate from these stress concentration points and continue to expand, eventually leading to fatigue fracture.
2. Structural design defects and stress concentration prevention strategies:
Optimize structural details: Use a large fillet design (such as R≥2mm) at the bottom of the keyway and the transition of the shaft shoulder, or increase the thickness of the transition fillet to reduce the stress concentration coefficient.
Improve the connection method: Prioritize the use of keyless connections (such as expansion sleeves) instead of traditional flat key connections to avoid excessive weakening of the shaft section; at the same time, optimize the tolerance of interference fit to reduce additional stress generated during assembly.
3. The third culprit: Improper assembly and poor operating conditions
1. Analysis of causes of improper assembly and poor operating conditions:
The installation accuracy and daily operating status of the equipment have a huge impact on the life of the shaft. If the coupling and brake wheel are poorly aligned, or the tension on the transmission wheel (such as a belt pulley) is too high, the bearing will be subject to additional bending moments and alternating stress. In addition, poor lubrication, lack of oil, equipment starting with load, emergency stop or overload operation will cause the spindle and reducer to operate under harsh working conditions, causing plastic deformation, severe wear and even instantaneous overload breakage.
2. Prevention strategies for improper assembly and harsh operating conditions:
Precise installation and alignment: Use a laser alignment instrument to calibrate the coupling during installation to ensure that the alignment error is controlled within a very small range (such as ≤0.03mm/m); high-speed shafts need to be dynamically balanced to avoid rotational centrifugal force deviations.
Standardized lubrication and daily maintenance: Add lubricating oil/grease of specified brands in strict accordance with the requirements, and regularly check the oil level, oil temperature and oil cleanliness to prevent abrasive wear and bearing burnout.
Strengthen working condition monitoring: Avoid equipment starting with load or running overloaded for a long time; install a torque limiter to automatically cut off power when overloaded; by monitoring data such as vibration intensity, current, and oil temperature, perform predictive maintenance before fatigue cracks expand.
