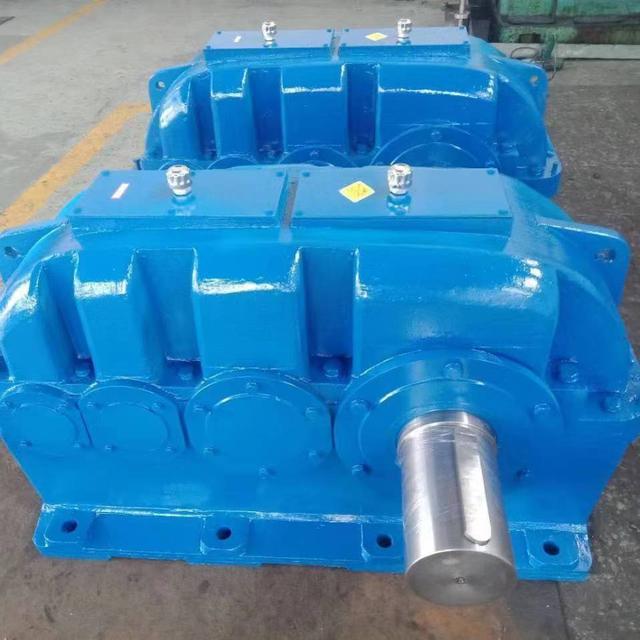

The cylindrical gear reducer is called an involute gear because the tooth shape of the gear is composed of involute lines and transition lines, so it is called an involute cylindrical gear reducer.Depending on the model, it can also be called ZQ type reducer.It is a two-stage cylindrical gear transmission, also called a two-stage cylindrical gear reducer.It is a power transmission mechanism that uses a gear speed converter to reduce the number of revolutions of the motor to the required number of revolutions and obtain larger torque.It is a relatively precise mechanical equipment, the purpose is to reduce the speed and increase the torque.Widely used in lifting, chemical industry, printing and dyeing, pharmaceuticals, transportation, mining, metallurgy, construction, cement, textile and other fields.
Cylindrical gear reducer classification:
With the continuous improvement and optimization of cylindrical gear reducers, on the basis of absorbing the design and manufacturing experience of similar reducers at home and abroad, the following types of cylindrical gear reducers have been extended:
1. ZQD type cylindrical gear reducer
The ZQD type cylindrical gear reducer adds a high-speed stage above it called a three-stage transmission without changing the input and output shaft positions and installation dimensions of the ZQ type reducer as much as possible, so it can also be called the ZQD type large transmission ratio cylindrical gear. reducer.
ZQD large transmission ratio cylindrical gear reducer models include six specifications: ZQD350+100, ZQD400+100, ZQD500+150, ZQD650+150, ZQD850+250 and ZQD1000+250.
2. ZQA type cylindrical gear reducer
The ZQA type cylindrical gear reducer is an improved design based on the ZQ type reducer. In order to improve the gear load-bearing capacity and facilitate the replacement of the ZA type reducer, the gear teeth are changed while the shape, shaft end and installation dimensions remain unchanged. Shaft material: the gear shaft is 42CrMo, the big gear is ZG35CrMo, the tempered hardness of the gear shaft is 291~323HB, and the big gear is 255~286HB.
3. ZQH type cylindrical gear reducer
ZQH type cylindrical gear reducer is an arc cylindrical gear reducer, which is formed based on the ZQ type involute cylindrical gear reducer series.Compared with involute gears of the same specification, arc gears not only have a longer service life, but also have greater capacity, higher strength, and less tooth surface wear.
The transmission ratios of ZQH type cylindrical gear reducer are: 317.28, 291.19, 243.86, 223.80, 191.22, 163.38, 141.73, 121.10, 92.21, 81.70, 65.54.
Cylindrical gear reducer performance advantages:
1. The gears of the cylindrical gear reducer are made of high-quality alloy steel and processed by carburizing, quenching and gear grinding, and the tooth surface hardness reaches 54-62HRC;
2. Small size, high efficiency, light weight and high carrying capacity;
3. The working temperature of ZQ reducer is -40C°~+45C°;
4. The input speed of the ZQ reducer shall not be higher than 1500 rpm, the peripheral speed of the gear transmission shall not exceed 14 m/s, and it can operate in both forward and reverse directions.
