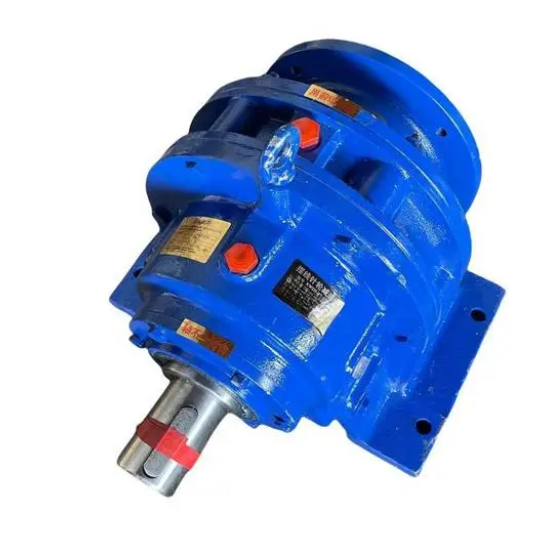

The vertical cycloid reducer is a commonly used transmission device with the characteristics of stability and efficiency.It consists of multiple levels, each with its own unique features and effects.This article will introduce in detail the differences between the various stages of the vertical cycloid reducer.
First, let’s take a look at the structure of the vertical cycloid reducer.It is mainly composed of input shaft, output shaft, spiral bevel gear, cycloidal pinwheel, etc.Each stage has an independent input shaft and output shaft, which achieve transmission through the meshing of cycloidal pinwheels.
In each level of the vertical cycloidal pinwheel reducer, there are two key parameters that need to be paid attention to: coincidence degree and transmission ratio.The coincidence degree refers to the degree of coincidence of the tooth profiles of the cycloidal pinwheel, and the transmission ratio refers to the ratio between the input shaft speed and the output shaft speed.
In the first level, the overlap is small and the transmission ratio is large.This is because the first level is primarily responsible for taking larger loads and passing them on to the next level.Therefore, the first stage usually has a larger number of gear teeth to increase the transmission ratio and thus improve transmission efficiency.
In the second level, the overlap gradually increases and the transmission ratio gradually decreases.This is because the second level needs to transfer the passed-down load to the next level.In order to maintain the smoothness and stability of the transmission, this level usually has an appropriate number of gear teeth and overlap.
In the third level and beyond, the overlap gradually increases and the transmission ratio remains stable.These levels are mainly used to balance the transmission and output to achieve the ultimate deceleration effect.The gear parameters of each level are accurately calculated and designed to ensure the normal operation and efficient transmission of the entire reducer.
In addition to this, there are some other differences between each level of vertical cycloidal reducer.For example, there may be different working environments and working conditions between levels.Some levels may need to withstand greater loads, while others may require greater precision and stability.These differences need to be considered and selected based on the specific application.
To sum up, there are differences in overlap and transmission ratio between the stages of the vertical cycloidal pinwheel reducer.Each level has its own unique role and function. Through reasonable design and configuration, efficient and stable transmission effects are achieved.In practical applications, appropriate levels and parameters need to be selected based on specific needs and conditions.
