Author: Site Editor Publish Time: 06-08-2026 Origin: Site

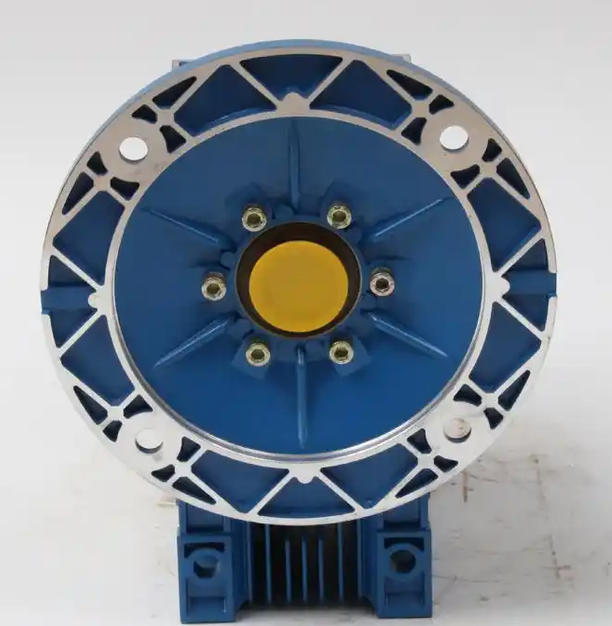

Lathes are precision processing equipment, and the installation accuracy of their reducers directly determines the final quality of the processed parts. Among them, "inaccurate alignment" is indeed the "number one killer" that leads to reduced equipment accuracy and abnormal wear of components. The following is a full analysis of the installation points of lathe reducers, focusing on alignment and calibration.
1. Core Pain Point: The Fatal Hazards of Inaccurate Centering
Poor alignment means there is parallel deviation, angular deviation or end face deviation between the input/output shaft of the reducer and the motor shaft/load shaft. On high-precision equipment such as lathes, seemingly small deviations will bring about a series of chain reactions:
Loss of machining accuracy: Axis deviation will directly lead to a significant attenuation of equipment positioning accuracy and repeated positioning accuracy, making it unable to meet the requirements of precision turning.
Accelerated wear of components: Uneven transmission load causes gear meshing deviation, local stress concentration on the tooth surface, and accelerated gear pitting and spalling. At the same time, bearings and oil seals will also increase wear and fatigue due to additional loads.
Deterioration of operating status: Obvious abnormal noise and jitter will occur during equipment operation, transmission efficiency will continue to decrease, and energy consumption will increase.
Significantly shortened service life: Cases show that a misalignment of only 0.1mm may shorten bearing life by 60%. Long-term misalignment may even cause serious failures such as output shaft breakage.
2. Precise installation: practical guide for alignment and calibration
To cure the alignment problem, we must abandon the traditional manual visual inspection method and adopt scientific tools and methods.
1. Use professional calibration tools
Laser Alignment Instrument: This is the most accurate and efficient calibration tool available, providing real-time data to ensure alignment accuracy under cold and hot (after operation) conditions.
Dial indicator (double-meter method): The radial + end-face double-meter method is used for measurement, which is also a reliable method widely used in engineering.
2. Strictly adhere to tolerance standards
For precision equipment such as lathes, alignment requirements are extremely strict. It is generally recommended to control both radial and angular deviations within 0.03mm. For parallel shaft reduction motors, the maximum allowable deviation usually should not exceed 0.05mm.
3. Ensure the installation foundation is stable
Base rigidity: The installation base must be flat and strong. It is recommended to use a steel plate with a thickness of not less than 10mm, and the flatness should be controlled at ≤0.1mm/m².
Reliable fixation: Anchor bolts should be grouted twice and tightened evenly in stages (such as tightening to 50% first, and then to 100%) to prevent base deformation due to uneven stress and secondary misalignment.
3. Key details of the entire installation process
In addition to alignment, the following details also determine the success or failure of the installation:
4. Operation and maintenance suggestions: Establish a regular review mechanism
Alignment accuracy is not guaranteed once and for all. Long-term operation of the equipment, vibration, and temperature changes may cause deviation.
Regular inspection: For equipment with high frequency of start and stop and high load such as lathes, a regular inspection mechanism should be established and a laser alignment instrument should be used to review the alignment accuracy of the shaft system.
Condition monitoring: The temperature difference of the bearing seat can be monitored through infrared thermal imaging (temperature difference >8°C indicates uneven load), or abnormal gear meshing frequency can be captured through vibration analysis to provide early warning of alignment problems.
Through the standardized installation process and preventive maintenance system, the risks caused by poor alignment can be avoided to the greatest extent and ensure the long-term stable and high-precision operation of the lathe reducer.
