In the mixer system, the reducer is far more than a simple speed-reducing and torque-increasing device. It is the core "buffer" and "protective umbrella" of the entire transmission system. When processing materials, mixers often face complex working conditions such as high viscosity, material agglomeration or foreign matter stuck. The reducer effectively responds to these impacts through a variety of mechanisms to ensure the safe and stable operation of the equipment.
1. The overload protection mechanism of the reducer itself
During the mixing process, if the material is agglomerated or blocked, the mixing shaft will experience abnormally large resistance. At this time, the overload protection function of the reducer will respond quickly to protect the reducer and mixing equipment from damage by reducing the output torque or cutting off the power source. In addition, the reducer can effectively buffer the huge impact when the equipment starts and stops, thereby extending the service life of the motor and the mixer body.
2. Flexible buffering of transmission connection method
In addition to the reducer body, its connection with the motor and stirring shaft also plays a key buffering role:
Belt drive buffer: Some mixers (such as planetary reducer configuration) use V-belt connection. When large aggregates or debris appear in the mixing barrel, resulting in a sudden increase in resistance, the V-belt may slip or even burn. This kind of "sacrifice" avoids serious mechanical damage such as rupture of the reducer housing or fracture of the bottom plate that may be caused by rigid connection.
Elastic coupling buffering: Installing an elastic coupling (such as a plum blossom gasket) between the reducer output shaft and the mixing shaft can effectively absorb vibration and impact loads during equipment operation, offset the eccentric mixing load, protect the transmission system from instantaneous overload damage, and reduce the leakage rate of the mechanical seal.
3. Impact resistance characteristics of different reducer types
Different types of reducers show different characteristics when dealing with mixing impacts:

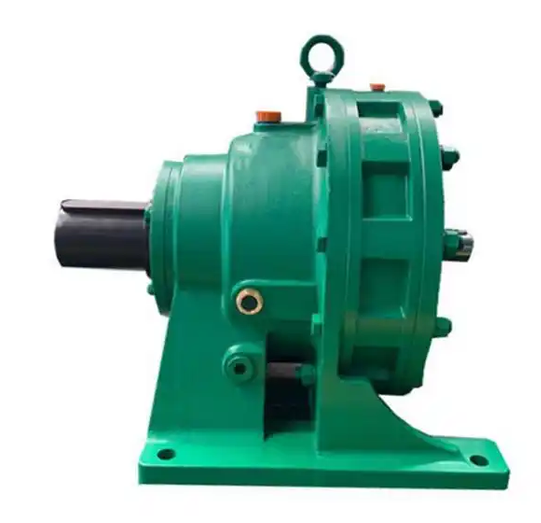

Cycloidal pinwheel reducer: It adopts the unique cycloid pintooth meshing principle and has multiple teeth contacting and transmitting at the same time, which makes it have extremely strong load-bearing capacity and impact resistance and overload resistance. It is the mainstream choice for industrial heavy-duty mixing.
Hard tooth surface gear reducer: Such as K series spiral bevel gear or R series helical gear reducer, the tooth surface reaches high hardness through high-frequency carburizing and quenching process, which can effectively resist wear and fatigue under heavy load and high-speed operation, and can still maintain stable performance output under harsh working conditions.
4. Innovative direct drive technology eliminates the need for buffering
With the development of technology, permanent magnet low-speed direct drive motors are introduced into mixing equipment. This motor adopts a low-speed and high-torque design to directly drive the mixing shaft, completely eliminating the traditional reducer or pulley structure. The elimination of the intermediate transmission link not only improves transmission efficiency, but also fundamentally eliminates the need for buffering maintenance caused by reducers or belt transmissions, reducing equipment failure rates.
