In the field of industrial transmission, smooth and efficient transmission of power is the core of stable operation of equipment. With the continuous evolution of technological development and practical application requirements, various types of reduction devices are seeking a balance between performance and reliability. Among them, the horizontal cycloidal pinwheel reducer, as a transmission solution with a unique structure and outstanding performance, has shown its unique value in many industrial scenarios. This reducer adopts a horizontal installation structure. Its core working principle is based on cycloidal pinwheel meshing transmission. It achieves speed reduction and torque increase through planetary transmission with small tooth difference.
The characteristic of this transmission method is that the main transmission components use a cycloidal wheel and a pinwheel to mesh. When the input shaft drives the eccentric sleeve to rotate, the cycloidal wheel installed on the eccentric sleeve will perform planar motion with both revolution and rotation. Through the constraints of the fixed pin teeth on the pinwheel, this compound motion of the cycloidal wheel is converted into a low-speed output rotation. The entire transmission process has a large number of contact teeth and a large overlap coefficient, which results in a small load-bearing pressure per unit area and a more stable transmission.

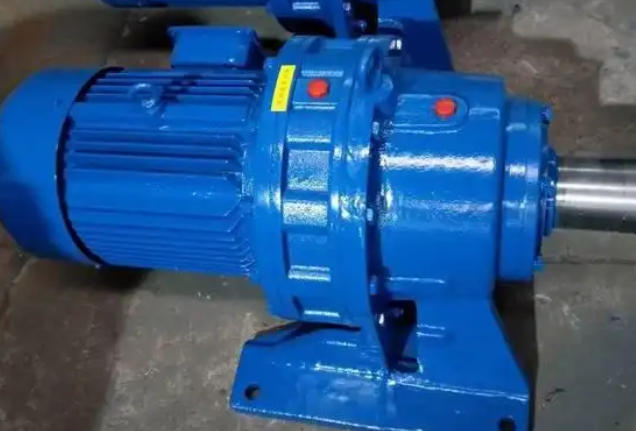

The structural design of the horizontal cycloidal pinwheel reducer enables it to have a series of characteristics suitable for industrial environments. It adopts a box-type structure as a whole, with compact layout of internal components and good sealing, which can effectively prevent lubricating oil leakage and the intrusion of external impurities. The horizontal installation method makes it occupy a more reasonable space in the horizontal direction, making it easy to integrate and install on a variety of mechanical equipment platforms. It is especially suitable for use in situations where the space height is limited or a horizontal power transmission axis is required.
In terms of performance, this reducer shows many advantages. First, the transmission efficiency is high. Since its meshing parts adopt rolling contact, the friction loss is relatively small, which can convert input power into output torque more effectively, helping to reduce overall energy consumption. Secondly, it has strong load-bearing capacity. The simultaneous meshing of multiple teeth distributes the load to multiple contact points, allowing it to withstand large overloads and impact loads and achieve good operating stability. Furthermore, the transmission ratio range is large and the grading is fine. A single-stage transmission can achieve a large reduction ratio and meet the precise requirements of different equipment for speed and torque. The vibration during operation is small and the noise level is low, providing a relatively quiet working environment. Another advantage brought by its structure is its long service life. The main transmission components wear evenly and slowly, and can maintain long-term reliable operation with correct maintenance.
Based on these characteristics, horizontal cycloidal pinwheel reducers have found their application positions in a wide range of industrial fields. In material conveying systems, such as belt conveyors, bucket elevators and other equipment, it can provide smooth and reliable driving power to ensure continuous and stable transmission of materials. In stirring and mixing equipment, such as chemical reactors, food mixers, etc., its stable low-speed and high-torque output is very suitable for processes that require uniform and powerful mixing. In the field of general processing machinery, such as wire drawing machines, winding machines, packaging machinery, etc., its precise control of speed ensures the quality consistency of product processing. It can also be seen as a key transmission component in environmental protection equipment, light industrial machinery and some infrastructure-related equipment.
When selecting and using a horizontal cycloid reducer, several key factors need to be considered. It is necessary to accurately calculate the required transmission ratio and rated load capacity based on the power and speed of the drive motor and the final output speed and torque required by the working machine. Diversification fully considers the load nature of the actual work, whether it is a steady load, moderate impact or severe impact, which is crucial to the determination of the speed and safety factor of the reducer. The installation environment conditions cannot be ignored, including ambient temperature, humidity, the presence of corrosive media, etc. These factors will affect the selection of shell material, sealing method and lubricant type. Routine maintenance and upkeep are the basis for ensuring its long-term performance, including regularly checking oil levels, replacing appropriate lubricants periodically, tightening connecting parts, and monitoring operating sounds for abnormalities.
Of course, any technical solution has its applicable boundaries. In special occasions where ultra-high speed, extremely high-precision positioning is required, or the installation space is extremely small, other transmission forms may need to be evaluated. But for most industrial transmission needs that require compact structure, smooth transmission, durability and reliability, and easy maintenance, the horizontal cycloidal pinwheel reducer is a pragmatic choice that has withstood the test of practice.
As the industrial manufacturing field continues to pay attention to equipment energy efficiency, reliability and comprehensive use costs, the performance details of transmission components are increasingly valued. Horizontal cycloid reducer, with its solid technical principles and robust performance, plays a practical role in improving the overall transmission efficiency and reliability of the equipment. Through its own technical characteristics, it provides another reliable choice for the power transmission link of various industrial equipment, helping to promote the smooth and efficient operation of industrial production processes.
