Planetary gear transmission is a mechanical structure that rotates multiple gears around a central axis. This structure gets its name from the way its motion is similar to the way the planets in the solar system orbit the sun. In a planetary gear set, the central gear is called the sun gear, and the multiple gears that mesh with it and rotate around it are called planet gears. The planet gears are usually mounted on a rotatable bracket, called the planet carrier. The outermost inner ring gear meshes with the planetary gear and forms the boundary of the transmission. Power can be input from any one member of the sun gear, planet carrier or ring gear and output from another member. The third member is fixed or limited in rotation, thereby achieving different transmission ratios and motion characteristics.
This multi-gear parallel meshing method brings about a power splitting effect. When power is input from the sun gear, it drives multiple planetary gears at the same time, distributing torque to various meshing points. This design allows the load to be borne by multiple gear teeth, significantly improving the load-bearing capacity of the structure. Compared with ordinary parallel shaft gear transmissions of the same volume and weight, planetary transmissions can transmit greater torque. Because power is diverted, the stress on individual gears is reduced, helping to extend gear life and allowing for more compact designs.
The precision of planetary gear transmission is rooted in its unique motion constraint relationship. The three basic components of the sun gear, planet carrier and ring gear are coupled to each other through the planet gear, and their rotational speeds follow a certain linear relationship. This relationship can be described by a simple equation, that is, the sum of the sun gear speed and the ring gear speed is equal to the planet carrier speed multiplied by a coefficient related to the number of teeth. When one of the components is fixed, the transmission ratio between the other two components is determined to a high standard and is a fixed value. This certain kinematic relationship is the basis for planetary gears to achieve precise transmission.
The key to achieving high-precision transmission lies in the precise manufacturing and control of motion relationships. The tooth profile error of the gear, the accumulated tooth pitch error, and the concentricity deviation between the various components during assembly will be amplified during the transmission process, manifesting as the rotation angle error or rotational clearance of the output shaft. In the manufacturing of NGW type (internal meshing-common planetary gear-external meshing) planetary reducer, the machining accuracy of the gear is extremely high, and it usually needs to reach the national standard level 5 or higher precision level. are used Angular contact bearings or tapered roller bearings to accurately support the planet carrier and sun gear, which can effectively control the deflection of the gears when stressed, ensure a stable meshing state, and control the transmission error to the arcminute or even arcsecond level.
The rigidity of a transmission system determines its ability to maintain accuracy under load. Planetary gear structures naturally have high torsional rigidity. Multiple planetary gears are evenly distributed on the circumference, so that the force flow transmission path between the input shaft and the output shaft is symmetrically distributed, which reduces deformation caused by uneven force. The ring gear is usually connected with the box through an interference fit or flange, forming an integral support structure and providing a stable base for gear meshing. High rigidity means that when the load torque fluctuates, the angle lag or rebound of the output shaft is very small, which is crucial for occasions that require frequent starts and stops and precise positioning.

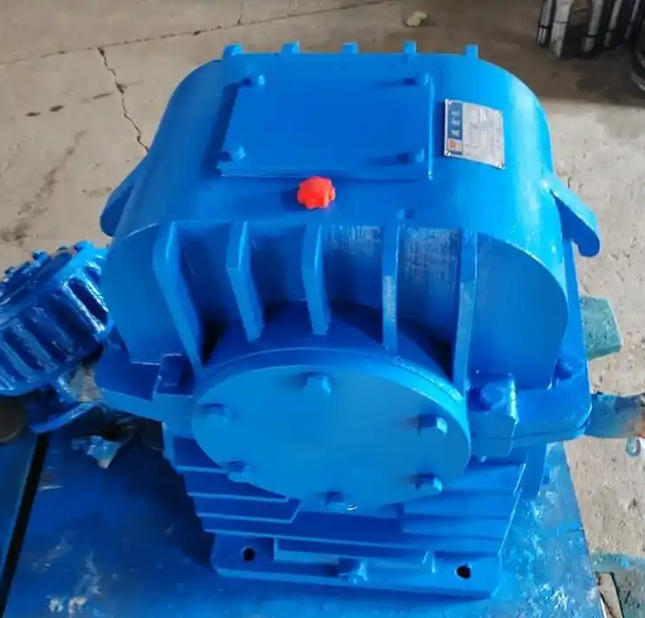

The other side of rigidity is resistance to shock loads. At the moment of heavy load start-up or sudden loading, the multi-tooth simultaneous meshing characteristics of the planetary gear can smoothly absorb impact energy and avoid stress concentration on a single tooth surface, causing pitting corrosion or tooth breakage. The optimized design of the box structure, such as the use of high-strength cast iron or ductile iron materials and the arrangement of reinforcing ribs, further improves the deformation resistance of the entire reducer under complex working conditions and ensures the durability of transmission accuracy.
Transmission efficiency is a key indicator to measure the energy loss of precision transmission devices. The high efficiency of planetary gear transmission comes from its rolling contact-dominated movement mode and power split. However, efficiency losses mainly arise from sliding friction during gear meshing, bearing rolling friction, and churning losses of lubricating oil. The use of modified gears, that is, slight modification of the tooth top and tooth root, can improve the sliding condition between the tooth surfaces during the meshing process and reduce friction and temperature rise. The choice of lubrication also directly affects efficiency. Appropriate viscosity lubricating oil or grease can form a thick enough oil film on the gear surface to prevent direct metal contact and reduce oil churning losses.
Thermal management is a hidden link in maintaining long-term precision transmission. If the heat generated during continuous operation cannot be dissipated in time, the internal temperature of the reducer will rise. The temperature rise will cause the viscosity of the lubricating oil to decrease and the seals to age. More importantly, it will cause uneven thermal expansion of the gears and boxes, destroying the original precision assembly gaps, resulting in increased noise, reduced accuracy and even jamming. Thermal balance needs to be considered in the design. For small and medium-sized reducers, rely on natural heat dissipation on the surface of the box; for large or continuously heavy-loaded reducers, it may be necessary to design heat dissipation fins on the shell, or forced air cooling or even circulating oil cooling systems to ensure that the operating temperature is stable within a reasonable range.
In the field of industrial robots, planetary reducers are mainly installed at joints. The requirements for the transmission device here are extremely stringent: extremely high repeatability positioning accuracy is required to ensure accurate movement trajectories; sufficient rigidity is required to resist the inertial force generated by the movement of the robotic arm; and the smallest possible backlash (backlash) is required to ensure an accurate stop position. The precision planetary reducer can control the backlash within 1 arc minute through its multi-tooth meshing design to eliminate backlash, meeting the needs of high-precision robot operations. Its compact structure also contributes to the miniaturization design of robot joints.
In the feed system of CNC machine tools, planetary reducers cooperate with servo motors to drive ball screws or linear guides. Its function is to convert the high speed and low torque output of the servo motor into the low speed and high torque required to drive the tool holder or workbench. In this process, the transmission accuracy of the reducer directly affects the machining accuracy of the machine tool , while its dynamic response characteristics (i.e., followability of speed instructions) affect the smoothness of the machined surface. The low-inertia planetary reducer design makes start-stop and reversal faster, improving the processing efficiency of the machine tool.
In large equipment such as bucket wheel stackers and reclaimers, ship loading and unloading machines used in mines and ports, planetary reducers are often responsible for driving pitch, rotation or traveling mechanisms. These working conditions are characterized by extremely heavy loads, harsh working environments (lots of dust, large temperature differences), and are often accompanied by strong shocks and vibrations. For such applications, the design of planetary reducers focuses on reliability and durability under extreme working conditions. The high-hardness gears manufactured by carburizing and quenching gear grinding process have a surface hardness of up to HRC58-62 and are extremely resistant to pitting corrosion and wear. The box seal adopts a combination of multi-channel labyrinth seals and high-quality lip seals to effectively prevent external dust intrusion and internal lubricating oil leakage.
In wind turbines, the speed-increasing gearbox on the main transmission chain is a key component, and its core often adopts a transmission form that combines planetary stages and parallel shaft stages. The wind turbine side planetary drive located in the first stage needs to withstand the huge and unstable torque from the blades as well as complex aerodynamic loads. Its reliability is directly related to the availability and maintenance costs of the entire wind turbine. To this end, gear materials need to have extremely high fatigue strength, and advanced simulation technology is used to accurately calculate and optimize tooth root bending stress and tooth surface contact stress to ensure stable operation within a design life of more than twenty years.
