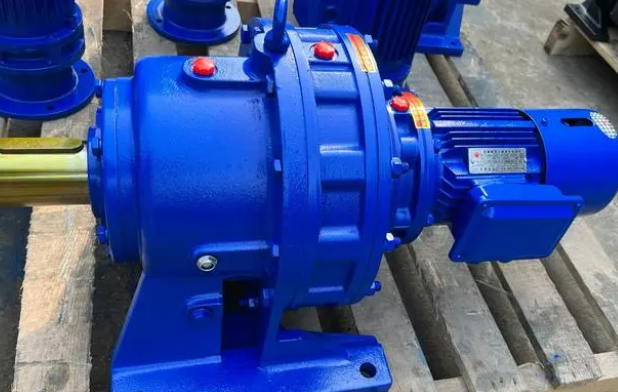

The cycloid reducer is an important equipment commonly used in industrial production. It can slow down the rotation speed during the transmission process and provide greater torque output.Before installing the cycloid reducer, we need to understand the installation steps and precautions to ensure a smooth and safe installation process.This article will introduce in detail the installation method of BWED52 cycloidal needle reducer BWED52-3053-0.75KW to help readers fully understand the installation points of this equipment.
Step one: Preparation
Before starting to install the cycloid reducer, we need to do some preparation work to ensure safety and efficiency.First, check whether the required installation tools and materials are ready.Usually, we need basic tools such as screwdrivers, wrenches, lubricants, etc. In addition, other special tools may be required depending on the specific installation requirements.Secondly, consult the product manual to understand the characteristics and installation requirements of this model of cycloid reducer for better subsequent operations.
Step 2: Install the base
The cycloid reducer needs to be installed on a base, so it is crucial to install the base correctly.First, place the base at the location where the cycloid reducer is to be installed, and use a level to adjust the level of the base.Next, use a screwdriver and screws to secure the base to the ground or equipment base to ensure the base is stable and secure.
Step 3: Install the input and output flanges
Next, we need to install the input and output flanges of the cycloid reducer.First, connect the flange to the input shaft and output shaft of the reducer, and use a wrench to tighten the screws to ensure that the flange is firmly fixed.When installing the flange, pay special attention to ensure that the flange matches the shaft of the reducer to avoid equipment damage due to incorrect positioning.
Part 4: Adding lubricating oil
The cycloid reducer needs to add lubricating oil regularly to ensure the normal operation and life of the equipment.Before adding lubricating oil, check whether the inside of the reducer is clean. If there are impurities, they should be removed first.Then, according to the product manual, select an appropriate amount of lubricating oil and pour it into the oil seal.After adding lubricating oil, seal the oil seal with a screw cap to prevent lubricating oil from leaking out.
Part 5: Electrical Wiring
Next, we need to perform the electrical wiring of the cycloid reducer.First, connect each electrical terminal block correctly according to the electrical drawing of the cycloid reducer.After ensuring that the wiring is correct, use insulating tape to tie the terminals firmly to prevent loosening or short circuiting.Finally, use a multimeter to test the electrical wiring to ensure that the electrical connection is normal and correct.
Step Six: Testing and Debugging
After completing the entire installation process, we need to test and debug the cycloid reducer to ensure that it operates properly.First, check that all connections are tight and there are no loose screws or wiring issues.Secondly, start the equipment and observe whether the operation is normal. If there is any abnormality, stop it immediately for inspection.Finally, according to the requirements of the product manual, conduct a load test to check whether the equipment can work normally.During the testing and debugging process, we must always pay attention to the operating status of the equipment and discover and solve problems in a timely manner.
Through the detailed introduction of the above steps, we understand the specific steps and precautions for the installation method of BWED52 cycloidal needle reducer BWED52-3053-0.75KW.During the actual installation process, you should strictly follow the requirements of the product manual to ensure the smooth progress of the installation process.Only on the basis of correct installation, the cycloid reducer can work normally and exert its best performance.
