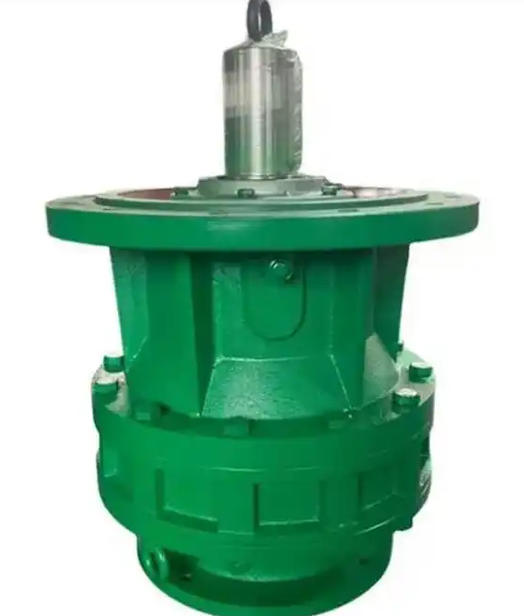

In the mixer system, the reducer is far more than a simple speed-reducing and torque-increasing device. It is the core 'buffer' and 'protective umbrella' of the entire transmission system. When processing materials, mixers often face complex working conditions such as high viscosity, material agglomeration or foreign matter stuck. The reducer effectively responds to these impacts through a variety of mechanisms to ensure the safe and stable operation of the equipment. 1. Due to the overload protection mechanism of the reducer itself, if the material is agglomerated or clogged during the mixing process, the mixing shaft will experience abnormally large resistance. At this time, the overload protection function of the reducer will respond quickly to protect the reducer and mixing equipment from damage by reducing the output torque or cutting off the power source. In addition, the reducer can effectively buffer the huge impact when the equipment starts and stops, thereby extending the service life of the motor and the mixer body. 2. Flexible buffering of transmission connection method In addition to the reducer body, its connection method with the motor and stirring shaft also plays a key buffering role. Read More

Read More

The working conditions of high-speed and low-speed cutting machines vary greatly. If reducers are used interchangeably, it will easily lead to reduced equipment accuracy, shortened service life, and even shaft damage. There are significant differences in core parameters, type selection and transmission structure between the reducers of high-speed and low-speed cutting machines: 1. High-speed cutting machine reducer Selection Features High-speed cutting machine pursues high beat, high acceleration and ultimate dynamic response. The requirements for the reducer focus on 'light, fast and accurate': 1. Extremely high accuracy and backlash requirements: Under high-speed operation, the return gap (backlash) of the reducer must be extremely small, usually ≤1 arc minute or even lower. Excessive backlash will cause drift, saw cuts or wavy patterns during high-speed positioning. 2. High rigidity and impact resistance: When frequently starting, stopping and reversing at high accelerations such as 3.0G, the reducer must have extremely strong rigidity. For example, a micro cycloidal reducer with an R-angle tooth arc design is more impact-resistant than a harmonic reducer and will not operate at a specific speed. Read More

Cutting machine reducers usually send out clear 'early warning signals' before aging and failure. Timely identification of the following 5 major signs and early replacement or repair can effectively avoid greater economic losses caused by complete damage to the equipment: 1. Frequent abnormal noise. A normal reducer operates smoothly. If abnormal noise occurs, it is usually a sign of damage to internal parts. For example, persistent 'rustling' or grinding sounds may mean tooth surface wear or insufficient lubrication; periodic 'clicking' or banging sounds are highly suggestive of broken gear teeth, chipping, or bearing damage. 2. Abnormal temperature surge The reducer will generate heat during operation, but if the shell temperature rises significantly or even becomes hot to the touch, it is a serious abnormality. This is usually caused by insufficient/deteriorated lubricant, overloaded operation, cooling system failure, or excessive frictional heat generation due to increased internal wear. 3. Significantly aggravated vibration Abnormal vibration is an important sign of internal imbalance or component damage. When the gear is severely worn and the teeth are broken Read More

Gear reducer is the core device of industrial and mechanical transmission systems. It is commonly used between the prime mover and the working machine. It plays the role of matching the speed and transmitting torque between the prime mover and the working machine or the actuator. A complete gear reducer is composed of multiple highly integrated components with clear functions, relying on these components to jointly achieve the core functions of reducing speed, increasing torque, matching inertia and transmitting power. So, what are the main structural components of the gear reducer? What roles do these components play? 01 Gear As the name suggests, the gear is the most important part of the gear reducer, responsible for transmitting torque and speed. The design, material and processing accuracy of the gear directly determine the efficiency, noise, load-bearing capacity and life of the reducer. In the gear reducer, the teeth are in line contact with each other, and are severely worn during movement and need to withstand large impacts. Therefore, the gear needs to have a large surface hardness and a certain degree of toughness in the core. Generally, gears are Read More

The reason why the planetary reducer has become the core of high-precision transmission is due to its ingenious 'sun gear-planet gear-internal ring gear' structure. Many people think it is complicated, but in fact, it only takes 3 steps to understand: the power input motor drives the 'sun gear' in the center to rotate at high speed, just like the central star of the solar system; planetary revolution + rotation, 3-4 planetary wheels engage the sun gear and the fixed internal ring gear at the same time, 'rotating' around its own axis while 'revolving' around the sun gear; the revolution of the torque amplification output planetary wheel drives the planet carrier to rotate at low speed, ultimately achieving 'reducing speed and increasing torque'—— For example, when the transmission ratio is 100, the motor speed of 1500r/min can be reduced to 15r/min, and the torque can be amplified synchronously by nearly 100 times (ignoring efficiency loss). Key formula: transmission ratio i = number of teeth of the internal ring gear ÷ number of teeth of the sun gear + 1, precision Read More
