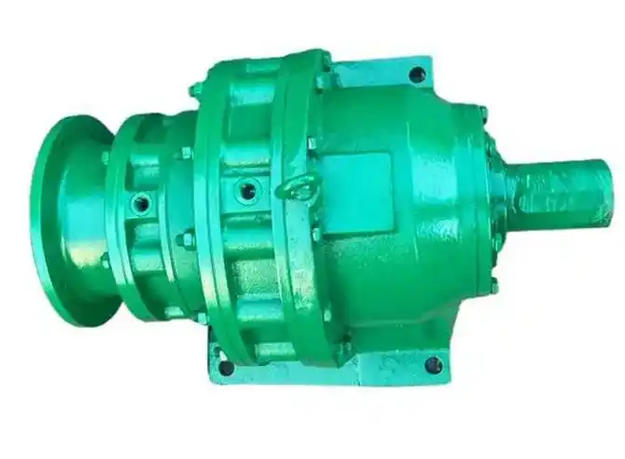

1. Extremely strong resistance to overload and impact. In the production process of wire drawing machines, especially the rough drawing process, the equipment often faces working conditions of high load, frequent starts and stops, and large load fluctuations. The cycloidal pinwheel reducer performs well in this regard: multi-tooth meshing distributes the load: the meshing of the cycloid wheel and pin teeth usually involves multiple teeth in simultaneous contact (about 30% to 50% of the teeth participate in meshing), the load is evenly dispersed, and the unit tooth surface pressure is small. Material and structural advantages: The core components are made of high-strength alloy cast iron or ductile iron, combined with surface-hardened bearing steel pin teeth, so that they can withstand large impact loads. High overload multiple: Its overload capacity is usually 2 to 3 times that of ordinary gear reducers. It is very suitable for heavy-load working conditions such as wire drawing machines. It can effectively buffer the impact of equipment transmission and solve problems such as heavy-load slippage and start-stop jitter. 2. Smooth operation, low noise and low vibration. Wire drawing operations have extremely high requirements on the stability of the equipment. The cycloidal pinwheel reducer can provide Read More

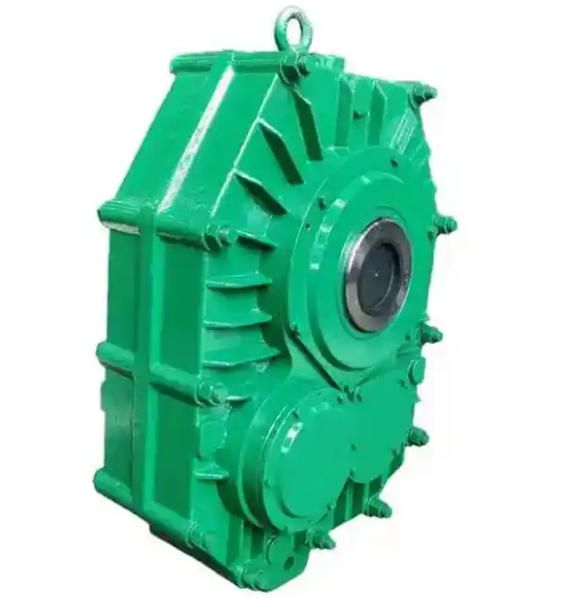

1. Tooth surface wear and gluing Under severe impact conditions of wire drawing load, if the reducer is poorly lubricated (such as insufficient lubricating oil, deteriorated oil quality or containing impurities), an effective oil film will not be formed between the sliding surfaces of the gears, resulting in dry friction. This will aggravate the friction loss of tooth surface materials and cause serious mechanical wear; in extreme cases, it may even cause tooth surface gluing, seriously affecting transmission accuracy. 2. Tooth surface fatigue spalling (pitting corrosion) The wire drawing machine has been subjected to heavy load and impact for a long time. When the gear is working under conditions close to or exceeding the contact stress determined by the design, contact fatigue is very easy to occur. Repeated contact stress will cause fatigue cracks on the tooth surface or subsurface, which will cause the tooth surface material to flake off (i.e. macro pitting or spalling), which is one of the common damage forms of hard tooth surface gears. 3. Broken gear teeth (broken teeth) Frequent starts and stops and torque fluctuations of the wire drawing machine will produce huge bending stress and impact load. If the gear material itself is strong Read More

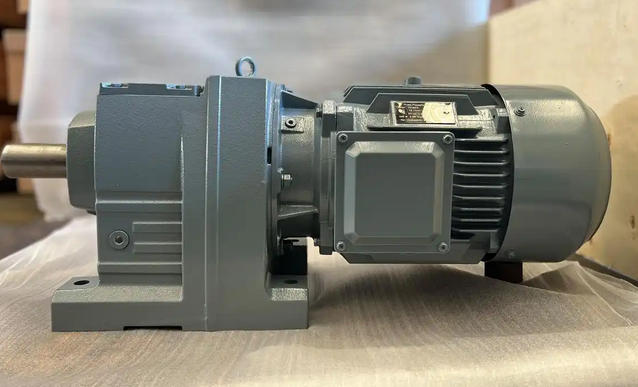

1. Comparison of commonly used reducer types for rewinding machines 1. Helical gear reducer - 'stable, durable, cost-effective' core advantages: high transmission efficiency (up to more than 95%), smooth operation and low noise, durable structure, suitable for long-term continuous work. Applicable scenarios: general transmission links such as conventional conveying and traction in rewinders. If you are cost-conscious and require stability and durability, this is a solid choice. Shortcomings: It is relatively large in size and does not have a self-locking function. 2. Planetary reducer - 'High precision, compact and resistant' core advantages: extremely high transmission accuracy (small return clearance), extremely compact structure (maximum torque under the same volume), good rigidity, and can withstand the impact load during the rewinding process. Applicable scenarios: Rewinding equipment that requires extremely high paper tension control and positioning accuracy, or situations where the internal installation space of the equipment is limited. Shortcomings: The manufacturing process is complex and the price is relatively expensive. 3. Worm gear reducer—— ' Read More

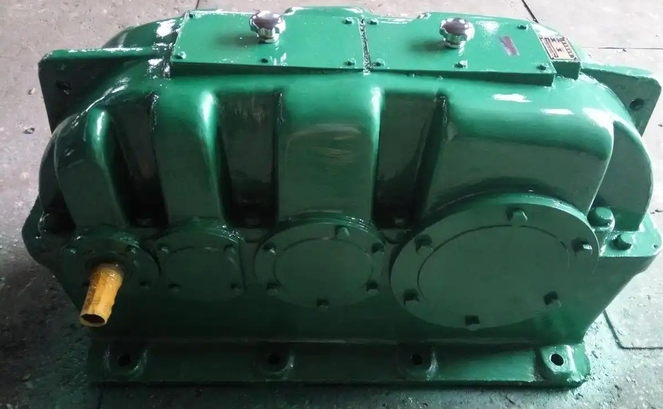

1. Upgrade the shell and sealing protection to improve the overall protection level: It is recommended to upgrade the protection level of the reducer to IP65 and above to effectively deal with dust and moisture conditions in the workshop. Upgraded sealing configuration: Rotating parts such as the input shaft and output shaft should use high-quality fluororubber seals or combined seals (such as double seals), and oil-resistant sealants (such as polytetrafluoroethylene sealants) should be used on the joint surfaces to prevent the intrusion of water vapor and dust. Optimize vent valve design: Thermal expansion and contraction during operation of the reducer will cause air pressure changes. It is recommended to install a respirator with desiccant, a labyrinth vent valve or a hydrophobic vent valve to effectively prevent external moisture and pollutants from entering while balancing the internal and external air pressure. 2. Materials and surface anti-corrosion treatment: Corrosion-resistant materials are preferred: For areas with higher corrosion levels, it is recommended to use stainless steel (such as 304/316L) shells; if you continue to use cast iron shells, you must rely on high-quality surface coatings. Reinforced surface coating: adopted Read More

1. Ensure that the installation foundation is solid and flat. The installation foundation of the reducer must be solid and reliable, and can withstand the weight and vibration of the equipment during operation. The flatness error of the installation base should be strictly controlled within ≤0.1mm/m, and high-strength bolts (such as low performance level 8.8) should be used for fixation, and anti-loosening washers should be used to prevent bolts from loosening due to unstable foundation or vibration, which in turn causes shell deformation. 2. Standardize the assembly operation and strictly prohibit violent construction. When installing the transmission parts on the output shaft, it is absolutely prohibited to use a hammer to directly hit it. The correct approach is to use the assembly clamp and the internal thread of the shaft end to press the transmission part smoothly through the bolt. Violent knocking can easily cause damage to the internal parts of the reducer and force deformation of the shell. 3. Ensure accurate axis alignment. The input and output shaft axes of the reducer and the axes of the connected main motor part must be kept on the same axis, and the error cannot exceed the allowable compensation of the coupling used. Read More

1. Abnormal axial movement of the shaft system and bearing structure: If the preload force of the internal bearing fails (such as improper locking nut torque), axial movement of the shaft system will occur, which will lead to uneven internal forces and abnormal loads. High-speed shaft whistling and vibration: When the speed suddenly rises, if the bearing preload force is improperly adjusted (a torque wrench is not used to adjust it to the standard range), high-frequency whistling and vibration may easily occur. Abnormal noise caused by alignment deviation: If there is a deviation in the concentricity/alignment accuracy of the internal shaft system or external coupling (such as radial deviation > 0.02mm, angular deviation > 0.05°), abnormal noise and abnormal vibration will occur during operation. 2. Abnormal gear meshing and tooth surface structure manifest abnormal vibration amplitude and frequency: When the internal gear load-bearing capacity is insufficiently estimated (such as module, tooth width and other parameters do not match) or there is eccentricity or backlash wandering, as the load increases, the gear meshing frequency and the amplitude of its multiplication will increase significantly (can increase by 30% Read More
