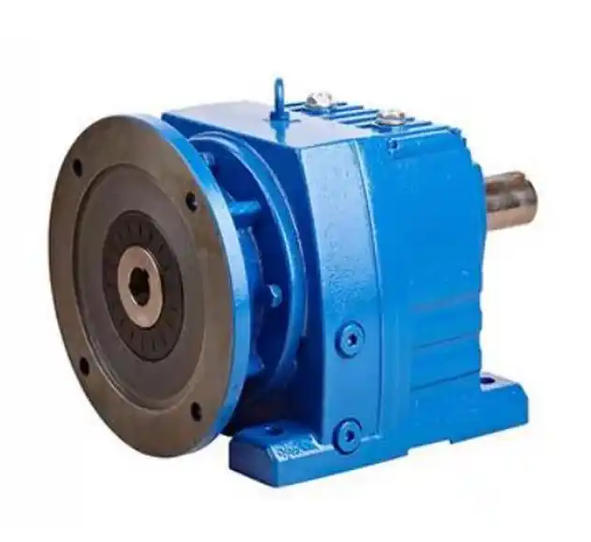

R87-23.40-5.5KW gear reducer is mostly used in heavy load and continuous operation conditions, which requires high assembly accuracy. Once there is a deviation in assembly accuracy, in addition to reducing transmission efficiency and increasing operating noise, it will also induce a series of chain mechanical failures, which in severe cases may cause damage to the entire machine and unexpected shutdown of the production line. This type of failure is not just simple local wear and tear, but also has a larger scope of harm. It is specifically divided into the following categories:
1. Bearing wear due to eccentric load and early failure
During assembly, the gear axes are not parallel, or the coaxiality of the bearing hole in the box exceeds 0.02mm, causing uneven stress on the inner and outer rings of the bearing, resulting in eccentric load. Continuous eccentric wear will cause local fatigue spalling of the bearing raceway, deformation of the cage, and in severe cases, the bearing will lock. On-site cases show that if the temperature control of the box processing is not in place and the hole diameter deviation is 0.05mm, the service life of the bearing will be shortened by more than 60%.
2. Poor gear meshing and reduced transmission performance
Insufficient assembly accuracy can easily lead to gear center distance errors, uneven tooth side clearances, and offset contact spots. This reducer has a helical gear structure. When the meshing position is shifted, the load on one side of the tooth surface can be increased by 2 to 3 times, accelerating tooth surface pitting and wear. The normal transmission efficiency of the reducer can reach more than 96%. Assembly deviation will reduce the efficiency to less than 90%. If the oil temperature exceeds 80°C, the lubricating oil will rapidly age and fail.
3. Seal failure and lubricating oil leakage form a vicious cycle
The input shaft and output shaft are assembled eccentrically, the friction between the oil seal lip and the shaft surface is uneven, and local wear is accelerated. Actual measurement data: When the oil seal coaxiality is greater than 0.1mm, the monthly oil leakage can reach more than 50mL, far exceeding the standard of ≤5mL. Oil leakage will cause the bearing to dry out due to lack of oil, and the failure will continue to worsen.
4. The vibration exceeds the standard, and there are hidden dangers of resonance and structural damage.
The concentricity deviation is greater than 0.2mm, and the amplitude of the entire machine exceeds 0.15mm when the equipment is running, causing anchor bolts to loosen and coupling bolts to break. Long-term vibration can also damage the equipment base and interfere with the stability of peripheral equipment. There are factory cases where the R87 reducer developed foot cracks after one week of operation without using a laser alignment tool for correction.
5. Motor overload, control system frequently alarms
Eccentric load increases transmission resistance and motor current increases, sometimes reaching 1.2 times the rated current. The thermal relay or frequency converter frequently trips due to overload, interrupting the continuous production of the production line. This type of failure is often misjudged as an electrical problem, but the root cause is actually mechanical assembly deviation.
6. Chain damage, forming a domino destruction effect
If the initial assembly deviation is not dealt with in time, it will cause chain damage: the bearing damage will cause metal debris to enter the gear meshing area, scratch the tooth surface and even cause broken teeth, further damaging the motor rotor. Later maintenance costs will rise sharply, which is much higher than the investment in early assembly and correction.
